Item: PML Magnetic Lifter

Description:

Detailed Product Description: PML Magnetic Lifter

Principles: Model PMJ 2 Permanent Magnet Lifter has strong magnetic path by Nd-Fe-B magnetic materials. On and off of the magnetic path is controlled by the manual handle. PMJ 2 permanent magnetic lifters mount magnet as power, lifting power will never weaken.

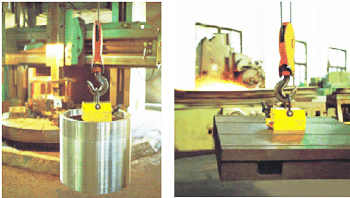

Application: In loading and unloading, the lifter can hoist iron/steel blocks, cylinders and others onto magnetic materials for linkage or connection. It is very convenient for application in loading, unloading, and moving. PMJ 1 permanent magnetic lifters are the most ideal lifting facility for factories, docds, warehouses and transportation.
Features: Lightly and ingeniously structured, easy for application, strong magnetic Attraction power and safe in handing.

Model	Rated lifting strength	Cylindrical lifting strength	Max pull-off strength	L	B	H	R	Operation temperature	Ddad weight


	(kgf)	(kgf)	(kgf)					( ⁰C )	(kg)
PML-100	100	50	350	64	92	97	126	<80	3
PML-300	300	150	1050	92	162	91	155	<80	10
PML-600	600	300	2100	122	232	117	196	<80	24
PML-1000	1000	500	3500	176	258	163	285	<80	50
PML-2000	2000	1000	7000	234	378	212	426	<80	125
PML-3000	3000	1500	10500	286	458	261	521	<80	220
PML-6000	6000	3000	21000	430	600	355	180	<80	420
