Magnets for DC motors
 |
|

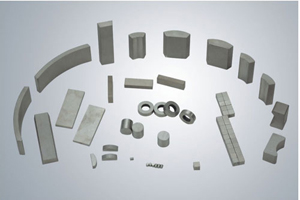

Detailed Product Description: Series of SmCo Magnets
SmCo magnet is a high performance , low temperature coefficent permanent magnet made of samarium and cobalt and other rare-earth elements. Its biggest advantage is its high working temperature---350 degree centigrade. It needn ' t to be coated because it is difficult to be eroded and oxidized. SmCo magnet is widely used in motors , watch , transducers, instruments , positional detector , generators , radar and etc.
Type |
Br Residual Flux Density |
HcbCoercive Force | Hcj Intrinsic Coercive force | (BH)max MAX. Energy Product | ||||
|---|---|---|---|---|---|---|---|---|
| mT | KGs | KA/m | KA/m | KA/m | KOe | KJ/m 3 | MGOe | |
| YX16 | 750-880 | 7.5-8.8 | 597 +- 40 | 7.5 +- 0.5 | >= 1989 | >= 25 | 127 +- 16 | 16 +- 2 |
| YX18 | 800-930 | 8.0-9.3 | 637 +- 40 | 8 +- 0.5 | >= 1432 | >= 18 | 143 +- 16 | 18 +- 2 |
| YX20 | 850-980 | 8.5-9.8 | 637 +- 40 | 8 +- 0.5 | >= 1273 | >= 16 | 159 +- 16 | 20 +- 2 |
| YXT18 | 900-1030 | 9.0-10.3 | 637 +- 40 | 8 +- 0.5 | >= 1194 | >= 15 | 143 +- 16 | 18 +- 2 |
| YX 22A | 900-1030 | 9.0-10.3 | 653 +- 40 | 8 +- 0.5 | >= 1989 | >= 25 | 175 +- 16 | 22 +- 2 |
| YX22B | 900-1030 | 9.0-10.3 | 635 +- 40 | 8 +- 0.5 | >= 1432 | >= 18 | 175 +- 16 | 22 +- 2 |
| YX24 | 980-1080 | 9.8-10.8 | 676 +- 40 | 8 +- 0.5 | >= 1432 | >= 18 | 191 +- 16 | 24 +- 2 |
| YX 26A | 1000-1130 | 10.0-11.3 | 716 +- 40 | 9.0 +- 0.5 | >= 1194 | >= 15 | 207 +- 16 | 26 +- 2 |
| YX26B | 1000-1130 | 10.0-11.3 | 716 +- 40 | 9.0 +- 0.5 | >= 796 | >= 10 | 207 +- 16 | 26 +- 2 |
| YX28 | 1030-1130 | 10.3-11.3 | 756 +- 40 | 9.5 +- 0.5 | >= 1432 | >= 18 | 223 +- 16 | 28 +- 2 |
| YX27 | 1000-1100 | 10.3-11.0 | 357-516 | 4.5-6.5 | 413-556 | 5.2-7.0 | 183-223 | 26 +- 2 |
| YX30 | 1100-1200 | 11.0-12.0 | 438-517 | 5.5-6.5 | 454-597 | 5.7-7.5 | 239 +- 16 | 30 +- 2 |
