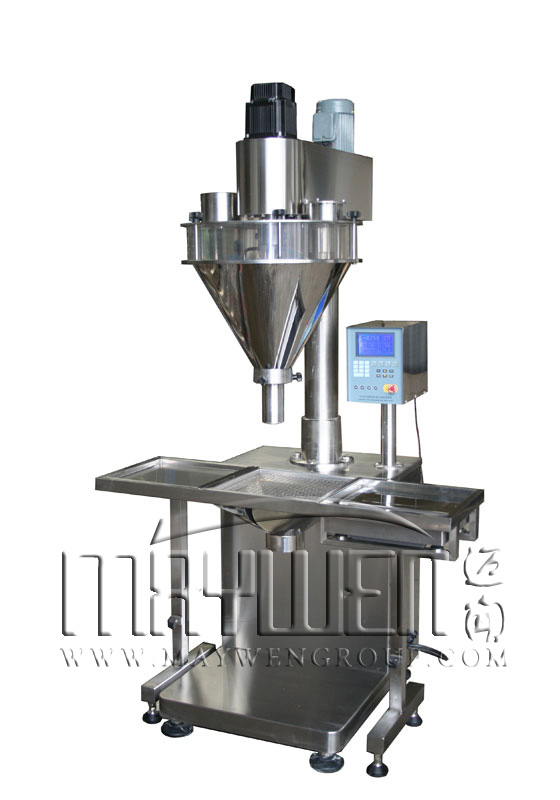

MW-1B-311 Semiautomatic Auger Filling Machine
| Metering Mode | Auger rotation filling traced by weighing feedback |
| Packaging Weight | 10 - 5000g(The screw attachment is to be changed) |
| Packaging Accuracy | �� 100g, �ܡ�2%; 100 - 500g,�ܡ�1%;��500g, �ܡ�0.5% |
| Filling Rate | 40 - 120 times/min |
| Power Supply | 3P / 220V-415V 380V 50-60Hz |
| Total Power | 1.5KW |
| Total Weight | 260kg |
| Overall Dimensions | 1140��970��2030mm |
| Hopper Volume | 45L(65 for oversized hopper) |
Descriptive abstract:
This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.
Main features:
- There is no limit of packaged container. It is widely used invariable materials and package-weight specifications.
- The surface of whole machine is made by stainless steel material except of motor. Knockdown transparent hopper, which could be washed without toolings.
- Weight feedback to run after the specific weight, overcome the shortcoming of the net weight change with the material specific-weight.
- Servo motor driving screw is characteristics of no easy abrasion, high-precision orientation, setup rotate speed, stable performance
- LCD( in Chinese or English) simply visual supervisory. Stepless adjust the net weight. Change the working parameter at any time, easy to control.Change the working parameter at any time, easy to control.
- Save the parameter of each product to later use. 10 recipes of magistral fomula save at the most.
- Fit for lots of material range from fine-powder to coarse-granule, if change the screw attachment. Dust- collector set on dust material situation to absorb dust spout out.
