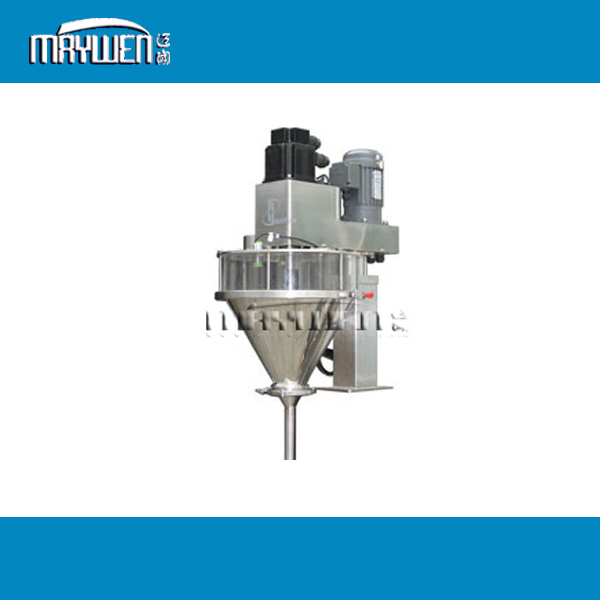

MW-3A-500 Auger Filling Machine

Filling Weight	1 - 300g
Filling Accuracy	<100g, �ܡ�2%; 100-300g, �ܡ�1%
Filling Rate	40 - 120 times/min
Power Supply	3P / 208V-415V 50/60Hz
Total Power	1.18KW
Total Weight	140Kg
Overall Dimensions	860��520��880mm
Hopper	Split hopper 25L

Descriptive abstract:

This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.

Main features:

• The hopper could be washed easily without tools.
• Servo motor drive screw.
• Stainless steel structure.
• Include handwheel of adjustable height.
• Replacing the auger parts,it is suitable for material from super thin powder to gralule.

Optional devices:

• Electric control box
• PLC,Touch screen control box
• Pneumatic flap
• Nitrogen gas flushing
• Better level sensor
