MW-2B-11 MW-2B-12

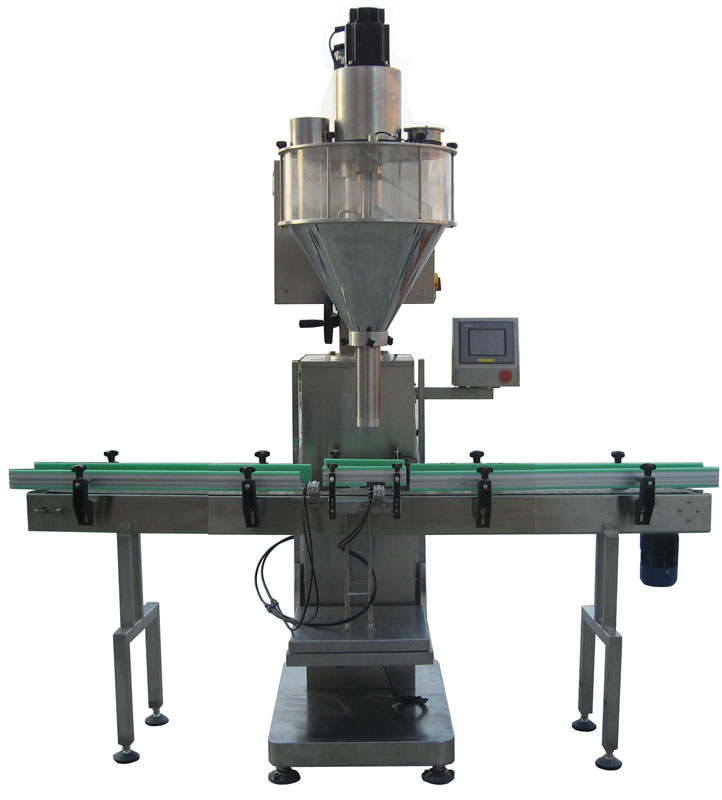

MW-2B-1 Series Powder Automatic Filling Machine

Model MW-2B-11 MW-2B-12
Dosing Mode Directly dosing by auger with online weighing and container lift-fall function
Filling Weight 10g - 5kg 100g - 10kg
Packaging Accuracy ��100g, �ܡ�2%; 100 - 500g, �ܡ�1%; ��500g,�ܡ�0.5% 100 - 1000g, �ܡ�2g; ��1000g,�ܡ�0.2%
Packing Speed 15 - 60 bottles/min 5 - 30 bottles/min
Power Supply 3P /208-415V 50/60Hz 3P /208-415V 50/60Hz
Total Power 1.6KW 2.7KW
Air Supply 6kg/cm2 0.05m3/min 6kg/cm2 0.05m3/min
Total Weight 320kg 450kg
Overall Dimensions 2000��970��2030mm 3000��970��2300mm
Hopper Volume 45L(Enlarged size 65L) 70L

Descriptive abstract:

This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.

Main features:

Optional devices:
