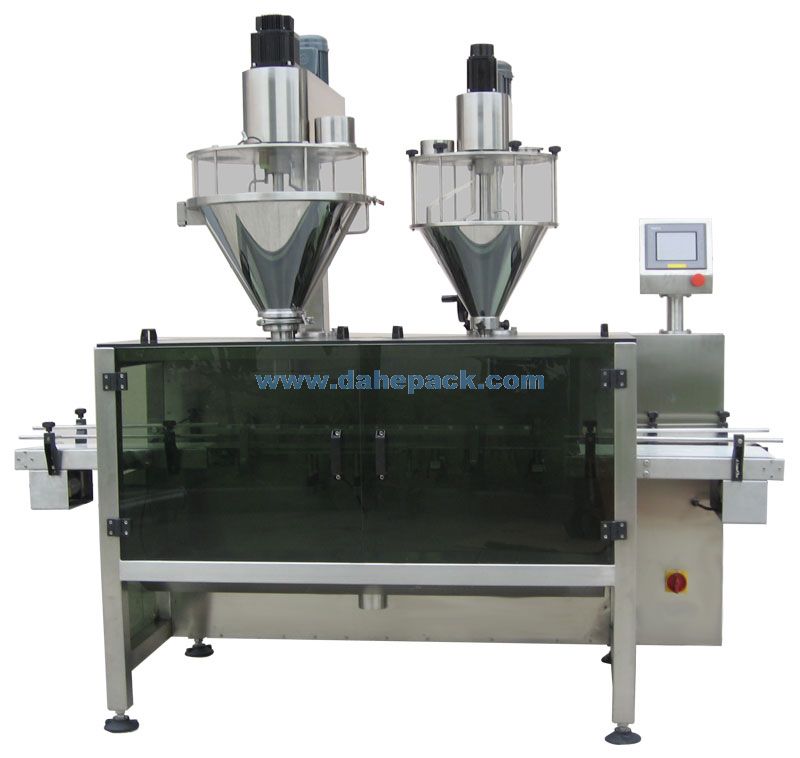

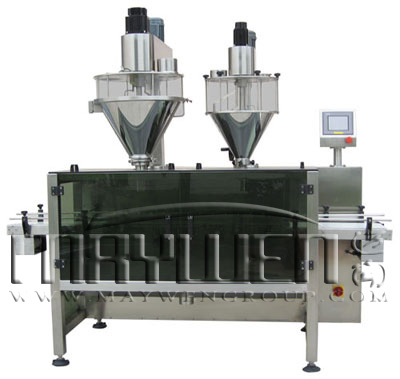

MW-2B-3 Auto Can Feeding,Filling&Packaging Machine
| Measuring Mode | Dual auger filling & weighing |
| Filling Weight | 100 - 2000g |
| Container Size | ��:30 -140 H: 50 - 280mm |
| Filling Accuracy | 100 - 500g,�ܡ�1g; >500g, �ܡ�2g |
| Filling Speed | Above 45 cans/min(#502); Above 50 cans/min(#307,#401) |
| Total Power | 3P / 208V-415V 50/60Hz |
| Air Supply | 3.3KW |
| Total Weight | 450kg |
| Air Supply | 6kg/cm2 0.3m3/min |
| Overall Dimensions | 2250��1000��2100mm |
| Hopper Volume | 50L(main) 35L(Assist) |
Descriptive Abstract:
This machine is a new-designed that we make it on placing the old Turnplate Feeding on one side. Dual auger filling within main-assist fillers and the originated Feeding system can keep the high-precision and take off the tiring cleaning of the turntable. It can do the accurate weighing & filling work, and also could combined with other machines to buildup a whole can-packing production line. This machine could be used in packing milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Main features:
- Double fillers, Main & Assist filling to keep work in high-precision.
- Pneumatic can-up and horizontal transmitting is controlled by computer system, be more accurate, more speed.
- Servo motor and servo driver control the screw, keep stable and accurate
- Stainless steel structure, Split hopper with polishing inner-out make it to cleaned easily.
- PLC & touch screen make it be easy of operation.
- Fast-respond weighing system make the strongpoint to rea
- The handwheel make the exchange of different filings to be easily.
- Dust-collecting cover meet the pipeline and protect environment to pollution.
- Horizontal straight design make the machine in little area
- Settled screw setup make no metal pollution in producing
- Process: can-into �� can-up �� vibration �� filling �� vibration �� vibration �� weighing & tracing �� reinforce �� weight checking �� Can-out
