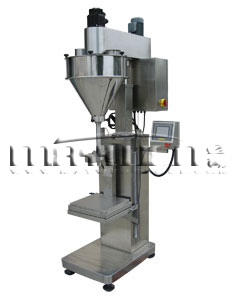

MW-5B Series Auger Filling Machine with weigher
| Model | MW-5B-1 | MW-5B-2 |
| Feeding Mode | 100g-10kg | 1-50kg |
| Filling Weight | 100-1000g,�ܡ�2g; >1kg, �ܡ�0.1-0.2% | �ܡ�0.1-0.2% |
| Filling Rate | 5-30 times/min | 5-25 times/min |
| Power Supply | 3P AC 208-415V 50/60Hz | 3P AC 208-415V 50/60Hz |
| Total Power | 2.2kw | 2.7kw |
| Total Weight | 350kg | 400kg |
| Overall Dimensions | 1000*850*2300mm | 1100*950*2500mm |
| Hopper volume | 70L | 100L |
Descriptive abstract:
This model is designed mainly for the fine powder which easily to spout dust and high-accuracy packing requirement.Based on the feedback sign given by below weight sensor,this machine do measuring,two-filling,and up-down work,etc.It is specially suitable for filling carbon powder,dry powder of fire extinguisher,and other fine powder which needs high packing accuracy.
Main features:
- Weight sensor is below the tray,to do fast filling and slow filling based on the pre-set weight,to guarantee the high packaging accuracy.
- Servo motor does up-down work driving with tray together,the up-down rate can be set randomly,no dust spouts out when filing.
- With servo motor and servo driver controll auger,perform stably,and with high accuracy.
- PLC control,touch screen display,easy to operate.
- Made of stainless steel,combined hopper,easily to be cleaned.
- With handwheel to adjust the height, easy to fill many kinds of weight.
- With fixed screw installation,the material quality won't be effected.
- Process:put bag/can(container) on the machine �� container raise �� fast filling,container declines �� weight reaches the pre-set number �� slow filling �� weight reaches the goal number �� take the container away manually.
Note:the pneumatic bag-clamp equipment and can-hold set is optional,they are suitable for can or bag filling separately.
