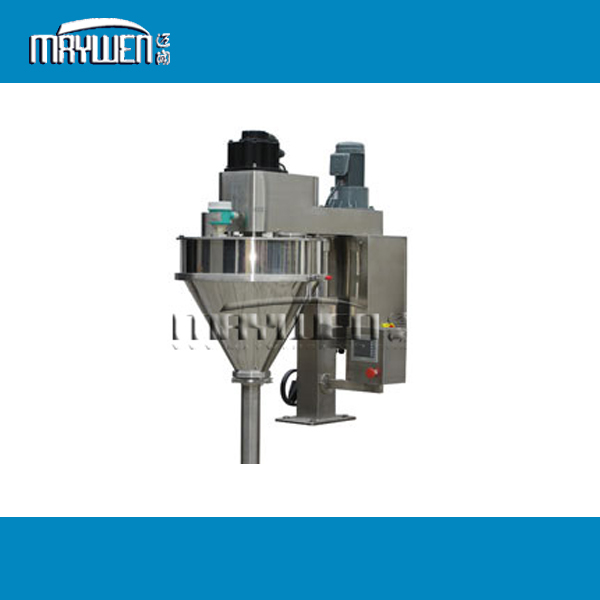

MW-3B-603 Auger Filling Machine

Filling Weight	10g - 5kg
Filling Accuracy	100 - 500g, �ܡ�1%; > 500g, �ܡ�0.5%
Filling Rate	40 - 120 times/min
Power Supply	3P /208V-415V 50/60Hz
Total Power	2.4KW
Total Weight	250kg
Overall Dimensions	1125��700��1200mm
Hopper	Split hopper 65L

Descriptive abstract:

This type can do measuring and filling work. Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder ,solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.

Optional Model and configuration:

Model MW-3B-600: Without electronic cabinet and control cabinet;

Model MW-3B-601: With electronic cabinet, without control cabinet;

Model MW-3B-602: With electronic cabinet and PCB & LCD control cabinet;

Model MW-3B-603: With electronic cabinet and PLC & Touch Screen control cabinet.

Characteristics:

• The hopper which could be washed without toolings.
• Servo motor driving screw is characteristics of no easy abrasion, high-precision orientation, setup rotate speed, stable performance
• The surface of whole machine is made by stainless steel material except of motor.
• Include handwheel of adjustable height.
• Fit for lots of material range from fine-powder to granule, if change the screw attachment.
